CRL

COMFORT VENTILATION UNIT WITH ROTARY HEAT EXCHANGER

Maximum air quality and air-tightness from a short unit.

The latest PRO-KLIMA CRL series sets new standards. Choose from three different thermal wheel heat exchangers: versions are available with sorption, enthalpy or condensation rotors.
All versions are equipped as standard with the new sealing system that ensures an extremely high air-tightness rate of 98%. The sorption rotors (optional) transfer moisture directly from the extract air side to the supply air side.

CRL1300
CRL2300
CRL3500
CRL4800
Show all

The PRO-KLIMA CRL can safely be used for hygienic applications in line with the current VDI 6022 standard. The compact unit also is Eurovent-certified as standard.

CRL-ID/IH - For indoor installation with vertical/horizontal or horizontal duct connection

CRL-IDH - For indoor installation with horizontal duct connection – free choice of supply air connections.

CRL-A - For outdoor installation (weatherproof) with horizontal duct connection

Product highlights at a glance

CRL Evo max - Regelung

  • Integrated control unit: Controls optimised
    for the appliance, factory-tested and installed in accordance with industrial standards. Can be easily connected to the Link pro interface module via ModBus.

  • Rapid warm-up: Optional boost damper excludes outside air for express heating of buildings or individual rooms.
wolf

  • Flexible filter options: Short bag filter supplied as standard and optional carbon filter to prevent odours. Filter quick-clamp system for
    filter changes done in seconds.

  • Extension options, such heating and cooling coils, filter pre-dryers, silencer modules and filter modules
CRL Evo max - EC Ventilator

  • Maximum efficiency: Low operating costs
    thanks to variable-speed EC fans
    and low air speeds within the appliance.

  • Eurovent-certified as standard,
    compliant with VDI 6022

  • Casing values in line with DIN EN 1886:
    - Thermal insulation: T2
    - Thermal bridge factor: TB2
    - Mechanical stability: D1
    - Casing leakage class: L1
    - Powder-coated housing in RAL 7035
CRL Evo max - geöffnet

  • Indoor unit (CRL-iH evo max) and outdoor unit (CRL-A evo max) both have horizontal duct connections. (Appliance split into 3 or optionally 5 parts for easy handling)

  • Outdoor units are equipped with intake and exhaust hoods (with droplet separators) and a 3D drip pan to protect the appliance and ensure perfect operation.
wolf

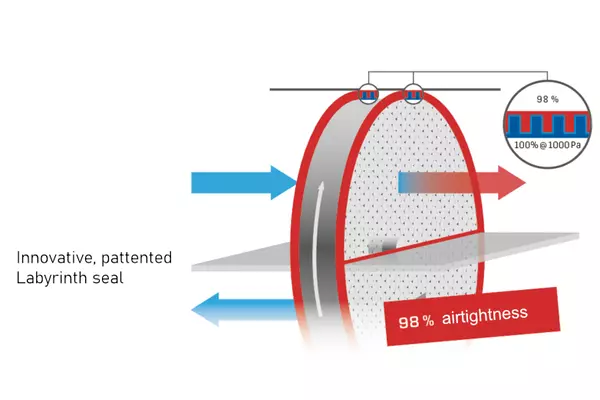

  • Leakage < 2%: Rotors with patented labyrinth seal – for 98% air tightness. Available as a condensation, enthalpy and sorption rotors. The outside air correction factor even exceeds class 1 requirements as stipulated by DIN EN 16798-3.

    Find out more about air-tightness

Eurovent certification

PRO-KLIMA is committed to full compliance with all relevant standards and regulations. Our appliances from the CKL evo series are also certified in line with the Eurovent standard. Thanks to our international experiene, our ingeeneers gladly work on projects throughout Europe and further.

WOLF CKL CRL eurovent certified
